Carrera 4 Controlled Flow Excavator

Seabed Clearance, Route Preparation, and Remedial Protection

Carrera 4 is a multi-functional controlled flow excavation tool enabling cost effective seabed clearance, route preparation, and remedial protection in areas that are otherwise difficult to access with conventional trenching equipment.

  • Proven and cost effective

  • Variable output for flexibility and high precision

  • Trench depth to 3.5m

  • Entire equipment spread with 20ft container

  • Suitable for a range of soils

  • Non-invasive methodology

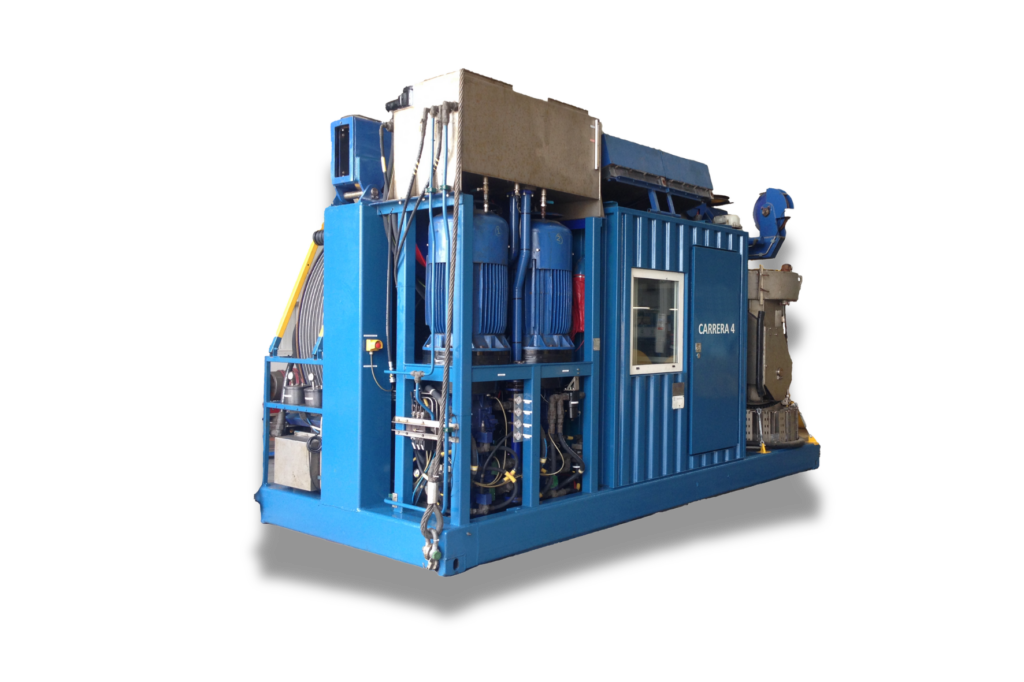

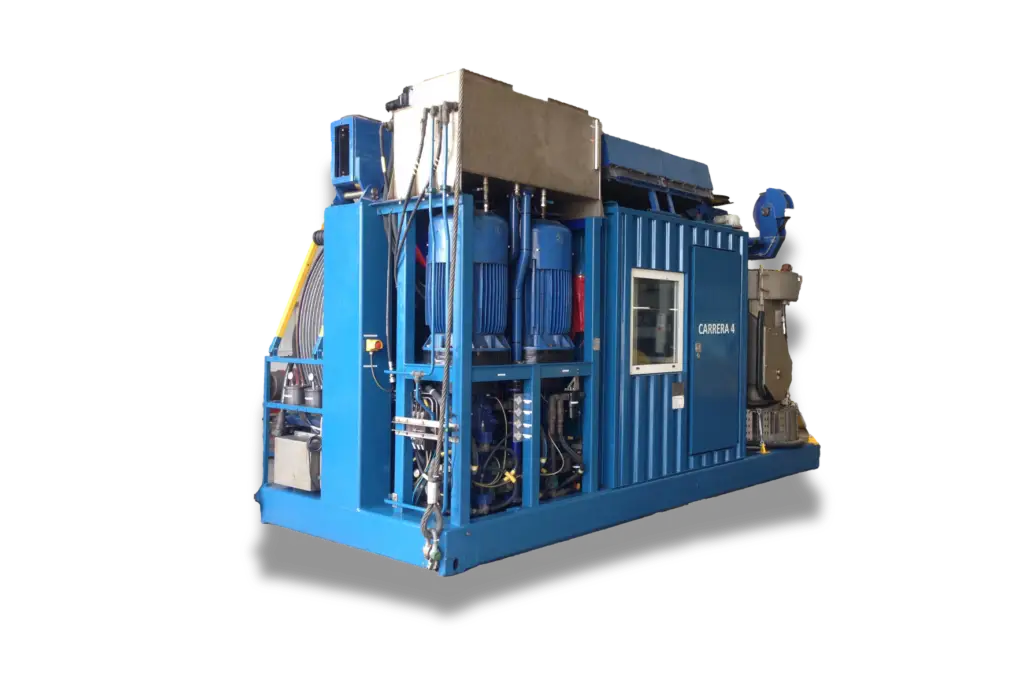

Carrera 4 CFE

Carrera 4 CFE

Carrera 4 is a key component in Enshore’s integrated trenching spread and supports a powerful fleet of trenching assets in a range of soils, including sand, gravel, silt, mud, and clay. The asset is fitted with a host of surveillance and positioning equipment that provides operators with live feedback and visibility of trenching progress.


Carrera 4 is ideal for working in close proximity to offshore structures. The tool width is adjustable to accommodate variable target areas and operates variable output modes with full positional control to provide flexibility and increased precision.

Carrera 4 CFE Specifications

Carrera 4 Overview

Max Operating Depth 100m
Trench Width 2 - 4.3m (Single-pass - With the tool deployed up to 4m above its target)

Dimensions

Length 2.2m
Width 1.4m
Height 2.32m
Weight in Air 6500kg (Adjustable width and distributed using ballast)
Total (Including LARS) Approx. 29.5te
Container:
Footprint of a 20ft container with a transport height of approximately 3.5m and working height of approximately 4.5m when operational. Designed for ease of transport and installation

Soil Type

Suitable for a range of soil types, including sands and clay.

Special Features

Built-in kiosk operator control system
LARS control
Survey and data acquisition system
Thermally insulated and provided with illumination, heating and air-conditioning

Enquire

If you’d like to enquire about using this machine, please contact us.
