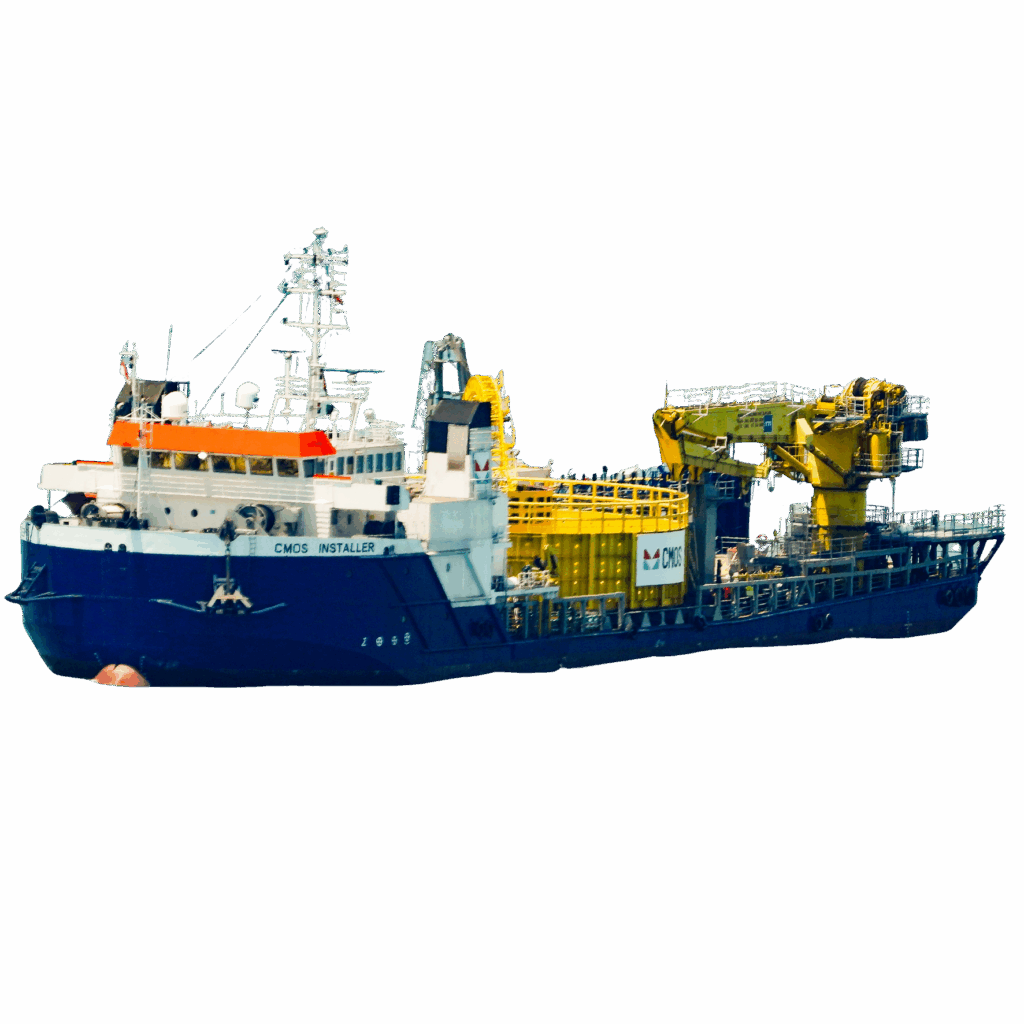

CMOS Installer Overview
|
|
Year built / builder
|
1999 / De Hoop B.V. Lobith, The Netherlands
|
|
Year upgraded / builder
|
2012 / Astander Shipyard, Spain
|
|
Flag
|
BE
|
|
Class
|
I ✠ Hull Special Service / Cable laying ship Unrestricted navigation ✠ DYNAPOS AM / AT R INWATERSURVEY ✠ MACH
|
|
Call sign / IMO No.
|
ORQV
|
|
Owner & Operator
|
Combined Marine and Offshore Services NV
|
|
|
Dimensions
|
|
Length overall
|
88.2 m (92.1 m including the stern chute)
|
|
Breadth moulded
|
24 m
|
|
Depth moulded
|
5.5 m
|
|
Maximum Draft
|
4.5 m(Adjustable width and distributed using ballast)
|
|
Deadweight
|
Around 4677 t
|
|
Registered tonnage
|
GRT: 4904 / NRT: 1472
|
|
|
Machinery
|
|
Propulsion system
|
Diesel-electric propulsion system with DEIF PPM-300 PMS
|
|
Main propulsion
|
2 x Schottel SRP 1212 FP azimuth thrusters, 1200 kW each
|
|
Bow thrusters
|
1 x Schottel SRP 1212 ZSV retractable azimuth thruster, 1200 kW 1 x Schottel STT 1010 LK FP tunnel thruster, 1100 kW 1 x Schottel STT 4 CP tunnel thruster, 1044 kW
|
|
Bollard pull thrust (v=0kn)
|
2 x 23.7 t BP SRP 1212 FP + 1x 23.7 t BP SRP 1212 ZSV
|
|
Generators
|
4 x Caterpillar 3512 B engines, 1424 kW, 480 V 3ph 60 Hz each
|
|
|
DP Equipment
|
|
DP Class-in kiosk operator control system
|
DP Class-II
|
|
DP System
|
Converteam DPS21 Duplex DP with remote Joystick fwd and aft control
|
|
Reference Systems
|
DGPS- 1 x Fugro Seastar 8200HP 1 x Fugro Seastar 9200G2 1 x Fugro Seastar 9205NSS USBL- 1 x Nortek ADCP Head – VM Operations Series VRU- 2 x TSS DMS-525RP (0.25° RMS – surface unit) PRS- 1 x Radarscan TRANSOM POLE- 1 x Norbit WBMS-STX
|
|
|
Capacities
|
|
Fuel oil
|
640 m³
|
|
Fresh / drill water
|
793 m³
|
|
Ballast tanks
|
2476 m³
|
|
Chiller
|
1 x 20 m³ + 1 x 15 m³
|
|
Freezer
|
2 x 20 m³
|
|
Clear deck area
|
931 m² total, 1 x 350 m² main deck @ 10 t / m², 1 x 100 m² tensioner deck, 1 x 54 m² ROV platform, 1 x 27 m² ROV control platform, 1 x 400 m² carousel
|
|
|
Offshore AHC Crane
|
|
Make
|
TTS marine A/S, Model GPOKAC 2000-70-30
|
|
Type
|
Knuckle boom active heave compensation (AHC) crane
|
|
Maximum water depth
|
300 m
|
|
Personnel lift
|
1.5 t
|
|
Lifting capacity – Main
|
SWL 35 t @ 5-30 m single fall, SWL 70 t @ 5-14 m double fall
|
|
Lifting capacity – Aux
|
SWL 5 t @ 30 m
|
|
Hoisting speed
|
Main: 0-24 m per min, Aux: 0-50 m per min
|
|
Slewing
|
360 degrees continuous
|
|
Operational limits
|
Maximum wind velocity: 24 m / s, Maximum trim: 2 deg, Maximum heel: 5 deg
|
|
|
Cable handling equipment
|
|
Turntable / carousel
|
Maximum capacity 3560 t (4000 t optional*): Inside diameter 8 m, Outside diameter 24 m, Height of carousel 4 m + 1.5 m, Volume of ring 1608 m³ + 603 m³, Surface ring 379 m², Turntable speed 2 rpm max. Main loading arm installed: Max product diameter 350 mm, Max product weight 150 kg / m. Cable divider installation is optional.
|
|
Hoisting winches
|
1 x Electric planetary hoist winch with CT mode
|
|
Fibre optic drum
|
Fibre-optic cable bin is not avail., but optional: Inside diameter: 3 m, Outside diameter: 7 m, Height of drum: 1.8 m
|
|
Cable splice area
|
100 m² tensioner deck
|
|
Trenching winch (optional)
|
150 t – 1000 m
|
|
Flexible pipe laying (optional)
|
Max product diameter 350 mm
|
