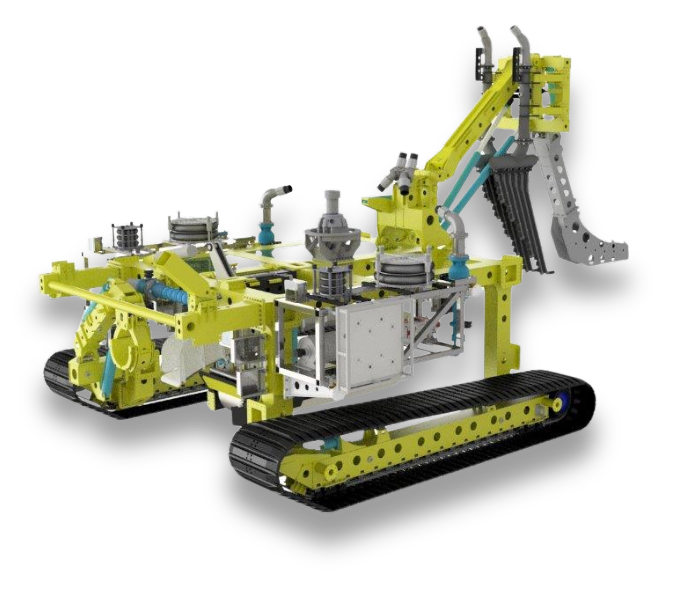

ENSHORE ENS1100 OVERVIEW
|
|
Operating Depth
|
1500m
|
|
Max. Product Diameter
|
300mm (Cutting) / 500mm (Jetting)
|
|
Max. Trench Depth
|
2.5m (Cutting) / 3.0m (Jetting)
|
|
Dimensions with cutter and rear jetting ( L x W x H)
|
12m x 7.5m x 5.5m
|
|
Weight (In Water)
|
39Te (depending on configuration)
|
|
Weight (In Water) with Buoyancy
|
1Te
|
|
Weight (In Air)
|
48.5Te (Jetting mode)
52.5Te (Cutting mode)
|
|
|
Speed Range
|
|
No Burial
|
0-1500 m/hr
|
|
Trenching (with cutter chain)
|
Up to 300 m/hr (soil dependent)
|
|
Trenching (Jetting)
|
Up to 400m/hr (soil dependent)
|
|
|
Vehicle Power
|
|
Total Power
|
800kW (Subsea)
|
|
Electric Motor Supply
|
Main system hydraulics
|
|
|
Soil Type
|
|
Suitable for a range of soil types, including sands and very soft to hard clays.
|
|
|
Simultaneous Cutting and Jetting Mode
|
|
Burial Power
|
400kW of cutting
300kW of jetting
|
|
Product Handling
|
Product passes through trencher and over cutting chain by means of pipe roller cradle or cable trough before exiting rear of machine through jetting swords
|
|
Depth Control
|
0 – 2.5m. Chain swings laterally to clear product during loading and unloading
|
|
Chain Speed
|
0-3m/sec
|
|
|
Jetting Mode
|
|
Burial Power
|
700kW of jetting
|
|
Product Handling
|
Product passes underneath trencher between tracks before passing through jet legs into fluidised trench
|
|
Central Water Jetting (typical)
|
2m swords with configurable nozzles
|
|
Rear Water Jetting (typical)
|
3m swords with configurable nozzles
|
|
Trench Depth Control
|
0-3m
|
|
Buoyancy
|
Optional air filled
|
|
|
Surveillance Equipment
|
|
4 x Bowtech Compact SD Colour Cameras
|
|
4 x Bowtech Compact SD Monochrome Cameras
|
|
4 x SubAtlantic 24V Pan & Tils Units
|
|
8 x 24V Dimmable LED Floodlights
|
|
2 x Multibeam OA Sonar (Fwd and aft facing)
|
|
2 x Multibeam profilers (fwd and aft)
|
|
Octans Gyro
|
|
Depth Sensor
|
|
Altimeter
|
|
TSS350/440
|
|
Responder/Transponders
|
|
|
Launch and Recovery System (LARS)
|
|
Type
|
A-Frame
|
|
SWL
|
60te
|
|
Sea State
|
Designed for sea state 5
|
|
Wind Period
|
8s wave period
|
|
Wind Speed
|
20m/s
|
|
Option to use crane launch system
|
